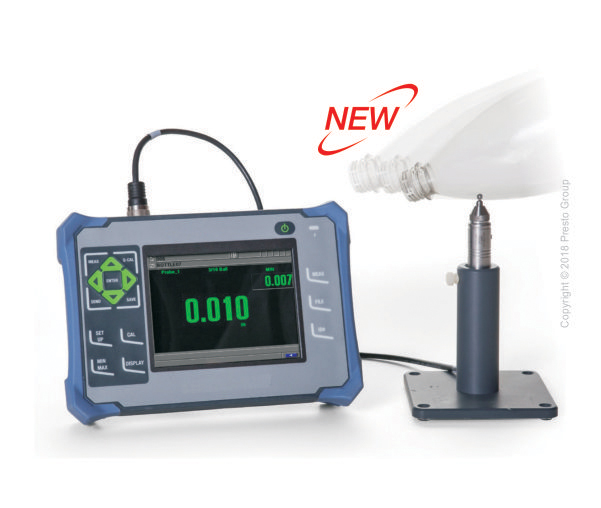

The MagnaMike 8600 Wall Thickness Gauge Tester for Kenya is a highly advanced and sophisticated testing instrument that is supplied to the clients by presto and is equipped with the latest measuring technology for accurate measurement of the thickness of non-ferrous surfaces. The apparatus works on the principle of Hall’s Effect. The instrument is used for measuring the thickness of various products such as PET bottles, water tanks, copper vessels and several other non-ferrous materials. The device is designed to comply with various quality testing standards.
Presto is a leading supplier and exporter of MagnaMike 8600 Wall Thickness Gauge Tester for Kenya that is widely used in different industries for the purpose of measuring the wall thickness of different non-ferrous materials. The machine is supplied with a high-resolution digital display for accurate reading of test results. Additionally, there are two types of replaceable caps as well as probe designs provided with the apparatus for easy and precise measurements. The instrument is given with complete with a user manual and a calibration certificate that can be traced easily to any of the laboratories approved by NABL.
Specification
- The device has the exact dimensions of 236 x 167 x 70 mm or 9.3 x 6.57 x 76 inches.
- The exact weight of the instrument is 1.68 kg which also includes the weight of lithium ion battery.
- The functioning of the device is supported in several different languages including Japanese, Chinese, Portuguese, Swedish, Norwegian, English, Dutch, Polish, Russian, Hungarian, Czech, Italian, Spanish, French, and German.
- The apparatus is equipped with an onboard feature of data storage. Additionally, there is also given an option of the removable flash memory card of 2 GB storage capacity with the apparatus.
- The battery life of the instrument is fitted with a transflective LED color digital display that comes with complete VGA and offers a resolution of 640 X 480 pixels.
- The LED display of the device has a dimension of (Width X Height; Diagonal) 4.62 in. x 3.49 in., 5.76 in. or 117 x 89 mm, 146 mm
- The display of the appliance has an update rate of 4, 8, 16, 20, Hz.
- The appliance offers a measurement rate of 60 Hz.
- There is also a feature of high and low alarm provided with the machine.
- The measurement resolution range offered by the appliance is 1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.) that is greatly dependent on the thickness that is being measured.
- The data logger offered with the machine is internal file-based.
Features
- The device is supplied with two replaceable wear caps types that are chisel tip and the standard tips.
- The probe designs offered with the device are right angle design and straight angle design.
- The appliance is supplied with an expanded range of measuring that goes up to 25.4 mm or 1 inch.
- The apparatus also has been provided with expanded target that includes wire target, ¼ inch as well as 3/16 magnetic ball targets.
- There are RS 232 VGA and USB ports provided with the machine.
- The appliance comes with a bench style case with an improved
