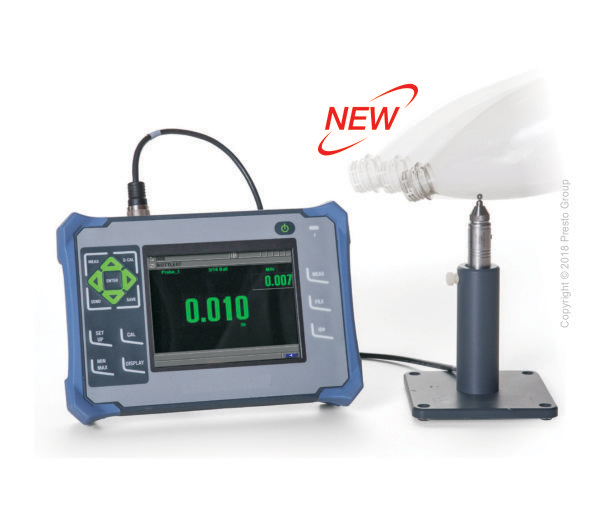

Wall Thickness Gauge - MagnaMike 8600 in UAE

MagnaMike 8600 for UAE is a major testing device that is offered by Presto and has been used in many industries for quality assurance process. The instrument is used for measurement of wall thickness of various non-ferrous materials such as copper, plastic, polymers, PET and so forth. The instrument is highly advanced and is designed to provide you the most accurate test results. The device is also in compliance with various different quality testing standards.

Presto is a major supplier of MagnaMike 8600 for United Arab Emirates that is a very helpful testing device for many different industries. The instrument is provided with two separate designs of probes that are highly efficient for measuring the thickness of surfaces that cannot be measured by conventional measuring methods. The instrument is also provided with two different replaceable wear caps that are chisel tip and standard tip.

Specification

• The exact overall dimension of the machine is given as 9.3 x 6.57 x 76 inches or 236 x 167 x 70 mm
• The instrument is light weight and has an exact weight of 1.68 kilograms which also includes the weight of the Li-ion battery.
• The device can be conveniently used in different language that include Japanese, Chinese, Portuguese, Swedish, Norwegian, English, Dutch, Polish, Russian, Hungarian, Czech, Italian, Spanish, French, and German.
• The apparatus is employed with an onboard data storage feature. In addition to that, the device also supports the option of a removable flash memory card with a capacity of 2 GB.
• The instrument has a long battery life of 12 to 13 hours.
• The device is provided with a digital display that has a high resolution of 640 X 480 pixels and is a transflective LED digital display with video graphic
• The exact dimension of the LED display are (W X H; Diagonal) 4.62 in. x 3.49 in., 5.76 in. or 117 x 89 mm, 146 mm.
• The appliance has a high display update rate of 4, 8, 16, 20, Hz.
• The measurement rate of the appliance is 60 Hz.
• The machine is also provided with a feature of high and low alarm.
• The apparatus offers an extensive measurement resolution range such as 1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.). This range greatly depends on the thickness that is measured by the machine.
• There is an internal file-based data logger system provided with the machine.

Features

• There are two wearable caps provided with the instrument that are chisel tip and standard tip that are replaceable.
• The probe design given with instrument has two types; one is a right angle, and the other is right angle design.
• There is an expanded measuring range of up to 25.4 mm or 1 inch given with the machine.
• The apparatus is also given with a several expanded measuring targets that are wire target, ¼ inches ball targets and 3/16 magnetic ball target.
• The instrument is provided with RS 232 VGA and USB ports for extended functioning.
• There is bench style case given with the machine that has an improved design.
