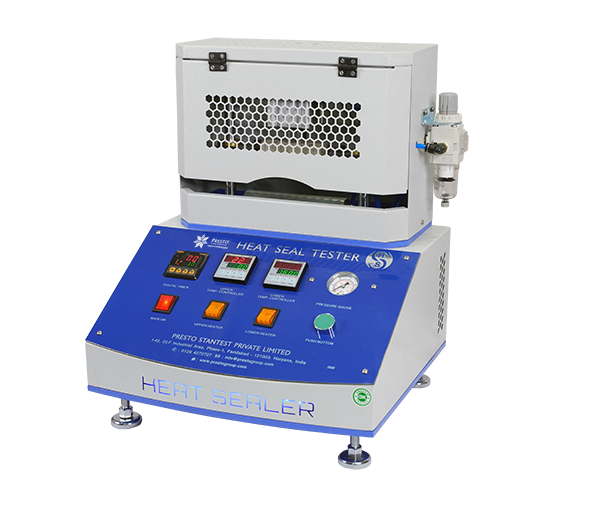

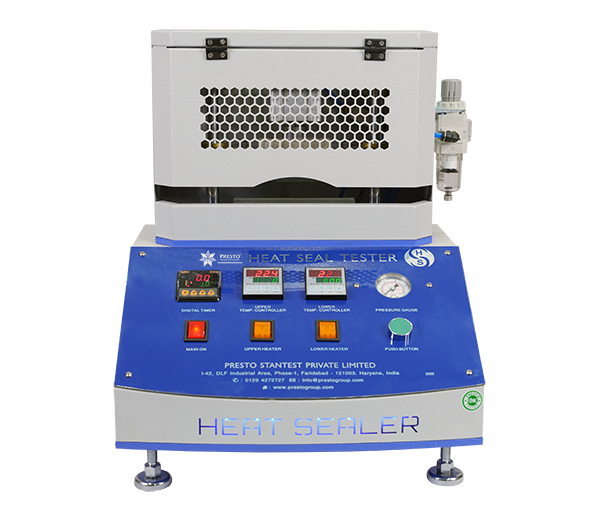

Laboratory Heat Sealer - Prima Model - PLHS-22 (150 mm)

Laboratory Heat Sealer - Prima Model - PLHS-22 (150 mm)

Heat Sealer Prima is a consistent tool used to perform sealing on flexible packaging products and other thermoplastic materials using pressure and heat by maintaining high temperatures. A heat sealer is used to measure the heat seal performance of composite films.

Availability: In Stock
Shipping Area:  Throughout the world

Model       PLHS-22 Prima



pdf-icon

Benefits of Heat Sealer Machine

Heat Sealer Prima is a consistent tool used to perform sealing on flexible packaging products and other thermoplastic materials using pressure and heat by maintaining high temperatures.  A heat sealer is used to measure the heat seal performance of composite films, plastic films such as PP, PE used in packaging different food products such as milk powder, instant noodle, food, washing powder, and drugs.

The Presto (Pneumatic Model laboratory) Heat Sealer is widely used in the plastic industry. The temperature of the Presto Heat sealer is also adjustable. The instrument has been provided with Digital Display and is Microprocessor based.

Both the upper and lower jaws of the Presto Heat sealer are heated separately with separate temperature sensors and controllers. Thus, it is possible to maintain both jaws at different temperatures. It is even possible to switch off one heater, while keeping the other on.

The Presto lab heat sealer is widely used in the packaging industry to seal flexible packaging products and other thermoplastic materials using heat and pressure.  This high-quality heat seal testing instrument comes with a microprocessor-based display for accurate test results. This lab heat sealer comes with a sealing temperature working range of ambient to 230 degrees Celsius. Presto is a leading manufacturer of laboratory heat sealers and offers this testing equipment embedded with highly advanced features.

The Presto heat sealing equipment has been manufactured as per industrial standards that include ASTM F 2029. Besides this, it comes with a PID temperature controller for the highest level of control and repeatability. It comes with a digital preset timer and works on a guide rod mechanism for efficient control of sealing. With the use of this lab testing instrument, one can effectively test the seal strength of packaging films and ensure quality material will be delivered to the customers. This consistent and easy-to-use lab testing equipment will make the product more functional by determining its sealing strength. You can get more information like laboratory heat sealer price then you can easily consult with us.

Buy a Heat Seal Tester directly from the top manufacturer and trusted supplier, Presto Group. Secure competitive prices and ensure packaging integrity with our high-quality equipment.


Specification

    Equipment Range  Ambient to 250ºC
    Sealing T emperature Working range   Ambient to 230ºC
    Accuracy ± 1ºC
    Least Count/Resolution  0.1ºC
    Power   220V , Single phase, 50 Hz
    Sealing size**   150x 15 mm OR 300x 15 mm
    T emperature Controller  4 digit PID
    Dwell Heat Seal time 0.1 – 99.9 sec
    Timer 4 Digit Digital
    Heat Sensor  Pt-100, Platinum Resistance Temperature  Detector (RTD)
    Sealing Pressure  2 - 6 Bar

    Highlights:
    T emperature Controller  PID
    Timer Digital Preset type
    Heat Source Cartridge Heaters
    Seal Pattern Straight line, Plain & Diamond Knurling (select any one pattern)
    T est Performed  Heat Seal
    Material Mild Steel
    Finish Powder Coated Havel Gray & Blue  Combination Finish and Bright Chrome / Zinc Plating for Corrosion Resistant Finish
    Dimensions  625x300x510mm




Features

  • Microprocessor based display for accurate test results
  • Highly accurate test results under pneumatic pressure control
  • Single Push button operation after setting PID temperature and time
  • Strong heating jaws for performing tests
  • No slippage in case specimen is placed uniformly without any loops
  • Bright LED display for temperature and timer
  • PID temperature controller for highest level of controls and repeatability
  • Digital Preset timer
  • EN 31 hard and temper sealing jaw material
  • Guide rod mechanism for efficient control of sealing
  • Independent adjustment of temperature for upper & lower jaws
