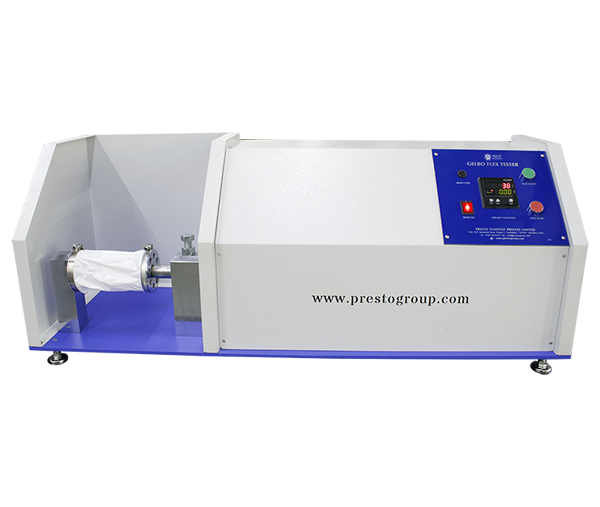

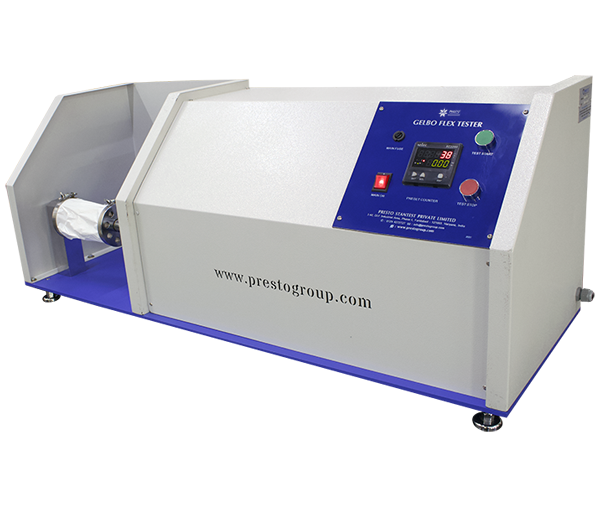

Gelbo Flex Tester

GELBO FLEX tester is valuable test in determining the resistance of flexible-packaging materials to flex-formed pinhole failures or measuring the flex durability of flexible barrier materials. The flexing action consists of a twisting motion followed, in most cases, by a horizontal motion, thus, repeatedly twisting and crushing the film. The frequency is at a rate of 45 cpm. Confirms to ASTM F392.



pdf-icon

 GELBO FLEX tester is valuable test in determining the resistance of flexible-packaging materials to flex-formed pinhole failures or measuring the flex durability of flexible barrier materials.

The flexing action consists of a twisting motion followed, in most cases, by a horizontal motion, thus, repeatedly twisting and crushing the film. The frequency is at a rate of 45 cpm. Confirms to ASTM F392.

Specification



Stroke distance 80 or 155 mm
Twisting angle400 degree or 440 degree
Twisting frequency/cycle 45 cycles / min
Motor1/4 HP , 1440 Rpm,Gear Motor
Mandrel diameter90 mm
StandardsASTM F392 conditioning levels A-E
Power230 Vac, 50 Hz




Features

  • Special ring fixtures provided for proper clamping of the test specimen
  • Provision of Set number of cycles through Digital Preset Counter
  • User-friendly electronic controls
  • Motorized mechanism ensures accurate test results.
  • Supplied with measuring template
  • Microprocessor & LED display




Reviews

For a long time, I was looking for an accurate testing instrument for measuring the flex durability of flexible barrier material. Then I came to know about Presto Gelbo Flex Tester. This user-friendly testing equipment is very helpful in measuring the flex durability of barrier materials.

- Rajnish Sharma

5
