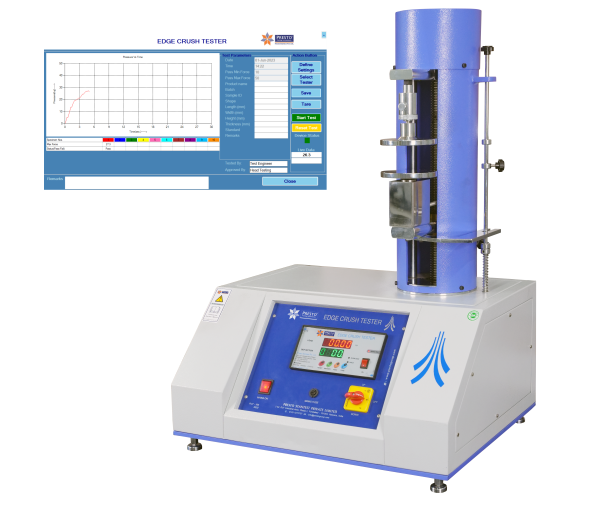

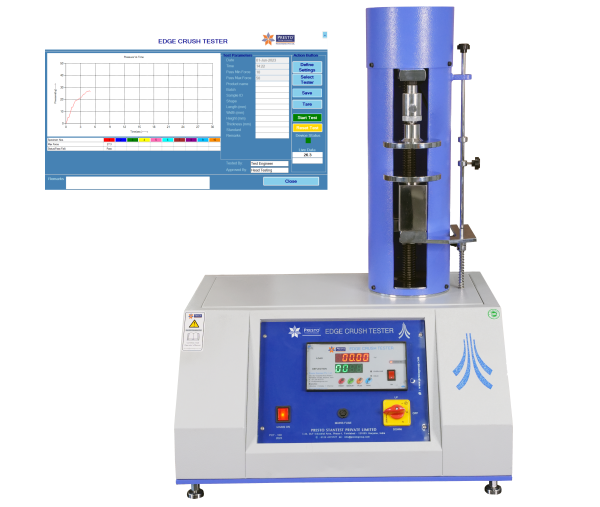

Crush /RCT/ECT /FCT Digital cum Computerised Model
RCT/FCT/Edge Crush Tester is a consistent tool to measure the crush strength of cardboard boxes and packaging containers. RCT/FCT/Edge Crush Tester reveals the crushing resistance in unit Kg/Unit length. It is a rigid support type compression...
Model PCT-100 (C) (Wintest)
RCT/FCT/Edge Crush Tester is a consistent tool to measure the crush strength of cardboard boxes and packaging containers. RCT/FCT/Edge Crush Tester reveals the crushing resistance in unit Kg/Unit length. It is a rigid support type compression tester designed to perform TAPPI & ASTM material tests on corrugated board & paper. It is suitable to perform Ring Crush (RCT), Edge Crush (ECT) & Flat Crush (FCT) as per standards. It is a table top model.
It comes with Dual System viz.
1) Digital Display (Incase computer is not used/available)
2) Inbuilt hardware & software CD.
Specification
| Load Cell Capacity | 100 Kgf |
| Display | LED (Digital) |
| Accuracy | ±2% at full load (with master load) |
| Least Count/Resolution | 0.01 Kgf |
| Power | 220V, Single phase, 50 Hz |
| Test Speed | 12.5± 2.5 mm/min |
Highlights :
| Safety Switch | Upward & Downward Limit Switches |
| Material | Mild Steel |
| Finish | Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 600x500x863 mm |
Features
- Microprocessor based display for accurate test results
- Display for compression strength of test specimen
- Separate fixtures for ring crush, edge crush and flat crush test.
- Highly accurate test results under compression force
- Strong gripping clamps.
- Bright LED display
- Inbuilt calibration facility
- Feather touch controls
- Graph test report is Force Vs Time
- 10 Sample test reports can be seen on one report
- Email facility of report
- Report Available in PDF format
- Pass/Fail Criteria can be programmed
- Easy Data Management. User can create product
- identification, test details etc.
- Inbuilt hardware/software CD
Reviews
I am the lead of quality assurance department in a company producing corrugated packaging for glass materials. We were facing multiple issue in selection of the raw material based on its strength, well edge crush tester by presto solved our worries and the machine Performance is just amazing.
- Hitesh Jotwani
5
I would definitely agree that at first, I saw no need of the computerized version but post purchasing and using I now say that this made the data recording and reporting part hassle free completely.
- Tusshar Malhotra
5
We can easily connect the test apparatus with the computer and get detailed analysis on our screen.
- Ashish Ahuja
5
You will get rigid support with a digital display in this testing instrument. Now, I am easily able to take the RCT test for my materials.
- Pawan Singh
5
FAQs
Q :Can the instrument dimensions be customized to fit specific requirements?
A :The dimensions mentioned (600x500x863 mm) for this packaging testing instrument are standard. However, if you have specific size requirements, you can easily consult with us by calling us at +919210903903 or emailing us at info@prestogroup.com to discuss customization options. Depending on your needs, customization may be possible for this quality testing equipment.
Q :What is the test speed of the digital cum computerized model of the ECT tester?
A :The Presto Crush/RCT/ECT/FCT Digital Cum Computerized Model operates at a test speed of 12.5±2.5 mm per minute. This controlled test speed is essential for consistent and reliable results.
Q :How does the Inbuilt Hardware and software CD system enhance testing capabilities?
A :The Inbuilt Hardware and software CD system allows for computerized data analysis and storage. It provides advanced features for data management, trend analysis, and report generation, making it ideal for organizations that require extensive data recording and analysis.
Q :How can I request a demonstration or obtain more information about this model?
A :To request a demonstration or gather more details about the Presto Crush/RCT/ECT/FCT Digital Cum Computerized Model, please give us a call at +919210903903 or email us at info@prestogroup.com. Our team of technical experts will be happy to assist you with your inquiries and provide the information you need.
Q :Can we perform multiple crush tests using Presto Digital cum Computerized crush tester?
A :Yes, this digital cum computerized model is capable of conducting three essential types of crush tests: Ring Crush (RCT), Edge Crush (ECT), and Flat Crush (FCT). It adheres to established industry standards for each of these tests. This makes it highly suitable for testing laboratory environments where precision and accuracy are essential.
Q :How the quality of a corrugated fiberboard (CFB) box is determined using the ECT Tester?
A :The ECT value obtained through testing with the ECT Tester reflects the rigidity of the CFB box. This value can be used to compare the quality of different CFB boards. Moreover, it's possible to determine the compression strength of the CFB box using McKee's formula: Compression Strength = K * ECT * T * Z Where: K = Constant ECT = Edge Crush Test Value T = Thickness of CFB board (wall thickness) Z = Perimeter of the box (2 L + 2 W)
