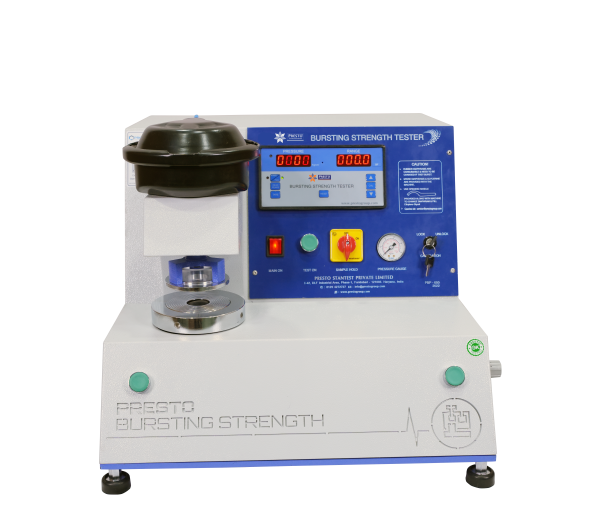

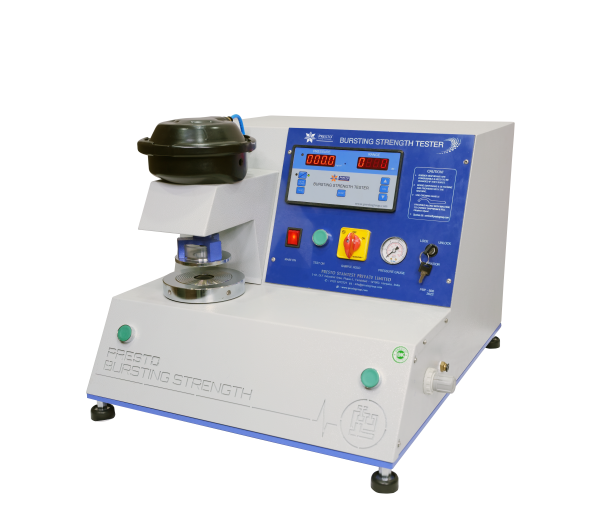

Bursting Strength Tester - Digital Pneumatic
Bursting Strength Tester - Digital Pneumatic is provided with digital display and pneumatic clamping system for determination of bursting strength of paper, paper-board, solid fiber board and corrugated board and boxes. The equipment is widely...
Model PBP - 600
Bursting Strength Tester - Digital Pneumatic is provided with digital display and pneumatic clamping system for determination of bursting strength of paper, paper-board, solid fiber board and corrugated board and boxes. The equipment is widely used to get the fast and accurate test results, by use of a single instrument.
The Electronic Bursting Strength Tester provides rapid test sequence through coordinated automatic controls for clamping and testing cycles.
An electronic pressure transducer provides a high level of accuracy and excellent reproducibility of test results.
The digital display is built on a state-of-the-art robust circuitry platform to ensure repeated performance after years.
Specification
- Range: 40kg/cm2
- Least Count : 0.1kg/cm2
- Display: LED (Digital)
- Specimen Clamping: Pneumatic
- Accuracy: ± 1% within 10% to 90% of entire range as per IS: 1828.
- Pressure Sensor: Pressure Transducer
- Test fluid: Glycerin about 98% purified(lab grade)
- Rate of fluid displacement: 95 cc/minute
- Dimensions: L 60cm x W 55cm x H 45cm
- Approximate Weight: net 77 Kg, Gross (Packed) : 93 Kg
- Power Requirement: 220 Volt; 50 Hz AC, Single phase
- Standard: ASTM D3786, BS 3137, ISO 2758, ISO 3303-1:2012, ISO 3689-1983, IS – 1060 – 1987
The equipment is built on a rigid metallic base plate and finished in Autumn Gray & Blue combination painting and bright chrome / zinc plating to give it a corrosion resistant finish.
The Instrument comes complete with Instruction Manual, Two spare diaphragms, Test foil set, Electrical Wiring Diagram & Calibration Certificate traceable to NABL approved Labs.
Features
- Facility to adjust clamping pressure.
- Provision for adjustment of predetermined clamping pressure to eliminate variations in the readings due to variations when done manually.
- Single push-button operation.
- High Precision Digital Read-out.
- Microprocessor based display for accurate test results
- Peak Hold facility for keeping maximum value of test result in memory
- Memory to hold up to 9 test reading
- Highly accurate test results under multidirectional Pneumatic Force
- Strong Gripping clamps
- Grooved structure of Test Specimen Holder to avoid slippage and intact holding of specimen under test
- Bright LED display
- Feather touch controls
Application:
For paper and paperboard.
For strong paper, Solid fiberboard & corrugated board.
Reviews
The double clamping system of the machine is simple amazing. Best device to get quick and accurate results. It is well-engineered model by Presto. Glad to buy the product from Presto.
- Kirti Raheja
5
Presto knows how to improvise the design as per market trends... The pneumatic version is excellent in performance and a thumbs up from our side.
- Shankar Raj
5
Pneumatic force application allow smooth testing and rapid results.
- Ruchir Gupta
5
The pneumatic clamping system of this testing instrument is best to determine of bursting strength of paper materials. I have purchased it to use in my manufacturing industry.
- Satyam Kumar
5
FAQs
Q :What is the price range of a Bursting Strength Tester?
A :The price of the bursting strength tester will differ as per your test needs (as one shoe does not fit all), and our testing expert will guide your best fit so that you can make an informed decision. Book a Free, no-obligation Consultation - just give us a call at +91 9210903903 or email us at info@prestogroup.com, alternatively, you may book a free Online Demo (sitting in the comfort of your office on Zoom or Teams).
Q :What are the different standards used to design this pneumatic model of bursting tester?
A :The Bursting Strength Tester is designed to adhere to a variety of standards, including ASTM D3786, BS 3137, ISO 2758, ISO 3303-1:2012, ISO 3689-1983, and IS – 1060 – 1987. These standards ensure that the quality and accuracy of the tests conducted with this tester are maintained. With this instrument, you can be confident that you are receiving accurate and reliable results every time.
Q :How many peak values can the bursting strength tester store?
A :This Digital Pneumatic Bursting Strength Tester has a storage memory with the capacity of storing 9 peak values. This will give users the flexibility to conduct comprehensive tests on different types of paper-related products.
Q :How can I be sure that the test specimen holder will not slip?
A :Our Bursting Strength Tester- Digital Pneumatic model has been designed with a grooved structure of the test specimen holder so that your sample is held securely and without any slippage. The grooves are specially created to prevent any kind of slippage and maintain the integrity of your specimen under test.
Q :What is the accuracy of the Presto Bursting Strength Tester- Digital Pneumatic model?
A :Presto Bursting Strength Tester – Digital Pneumatic model offers excellent accuracy of ± 1% within 10% to 90% of the entire range as per IS: 1828 testing standards. This means that you can be assured of precise results for your paper and packaging materials when you use our high-quality lab testing instrument.
Q :How pneumatic bursting strength tester is different from the digital model?
A :Our Pneumatic Bursting Strength Tester is equipped with a digital display and pneumatic clamping system which makes it a more accurate and efficient lab testing instrument. It offers rapid test sequences with coordinated automatic controls for clamping and testing cycles, providing you with more precise results in less time compared to the manual process. Plus, its user-friendly interface allows easy operation and precise testing results for testing the product bursting strength.
